In modern wireless communication, the concepts of Angle of Arrival (AoA) and Angle of Departure (AoD) play critical roles in determining the direction of signals transmitted or received by wireless systems. AoA refers to the angle at which a signal reaches a receiver, while AoD is the angle at which the signal is transmitted from a transmitter. These two concepts are essential for direction-finding systems, localization, and optimizing communication channels in various technologies, such as Real-Time Location Systems (RTLS), Wi-Fi, Bluetooth, and 5G networks.
AoA and AoD are based on the directionality of radio waves. By measuring or calculating these angles, devices can determine positions and orientations with high accuracy. This is achieved through the use of antenna arrays and sophisticated signal processing algorithms.

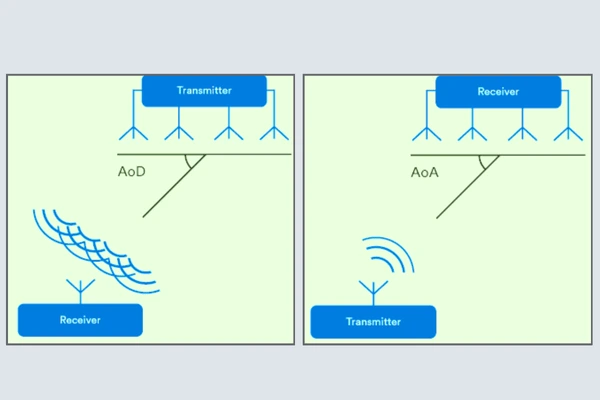

Differences Between AoA and AoD
- AoA (Angle of Arrival): Refers to the direction from which the signal arrives at the receiving antenna array. It is widely used in applications where receivers need to locate transmitters, such as asset tracking or mobile localization.
- AoD (Angle of Departure): Refers to the angle at which the signal departs from the transmitting antenna array. It is primarily useful in scenarios where the receiving devices need to identify the direction of transmission, such as in beamforming for cellular networks.
AoA focuses on directionality at the receiver end, whereas AoD is used at the transmitter side. While both techniques are used for spatial processing and location tracking, AoA is more common in systems like Bluetooth and Wi-Fi, whereas AoD is highly relevant for beamforming in 5G networks.
AoD is being adopted alongside Angle of Arrival (AoA) to enhance positioning and directional accuracy. While AoA has been in use for some time, AoD is now becoming increasingly important, particularly in systems like Bluetooth 5.1 and upcoming 5G features. AoD is crucial for optimizing how devices communicate with each other by accurately determining the direction from which signals are transmitted.
AoD Adoption in Phones
While Angle of Arrival (AoA) has been used in various RTLS systems and communication technologies for years, Angle of Departure (AoD) is relatively new and is gradually being integrated into consumer devices, especially smartphones. Currently, most smartphones don’t yet fully support AoD for precise location-tracking use cases, but the technology is expected to gain traction over the next few years.
Current Use of AoD in Phones:
Apple Devices with UWB (Ultra-Wideband):
Apple’s iPhone 11 and later models, including the iPhone 12, 13, 14, and newer, have integrated Ultra-Wideband (UWB) technology through their U1 chip. This allows for extremely precise location tracking and supports both AoA and AoD for features like AirTag tracking and spatial awareness when transferring data or locating devices.
While UWB uses Time of Flight (ToF) as its primary positioning method, the inclusion of AoD improves accuracy by allowing devices to not only estimate how far a signal has traveled but also in which direction the signal originated.
Samsung Devices:
Samsung’s flagship models, such as the Galaxy S21+ and later models like the Galaxy S23, also support UWB. Similar to Apple’s implementation, this enables highly precise location tracking and device-to-device communication using AoD. Samsung has integrated this technology into their SmartThings Find feature, which works similarly to Apple’s AirTag system for tracking objects and devices.
Other Bluetooth 5.1 Devices:
Smartphones equipped with Bluetooth 5.1 or later, such as certain models from OnePlus, Google Pixel, and Xiaomi, also have the hardware to support AoD. However, widespread software implementation is still in development for many manufacturers. As Bluetooth 5.1 becomes more common, we can expect AoD to be used in applications like indoor navigation, asset tracking, and proximity-based services.
Applications in Real-Time Location Systems (RTLS)
1. Logistics and Warehousing: Asset Tracking
Angle of Arrival (AoA) Example: Forklift Tracking
- Scenario: In a large warehouse, multiple forklifts are operating to move inventory. Tracking the location of each forklift in real-time helps improve efficiency, prevent collisions, and optimize workflow.
- How AoA Works: Forklifts are equipped with Bluetooth or UWB tags that emit signals. These signals are received by strategically placed antennas in the warehouse. The RTLS system calculates the AoA of the signal at each antenna to determine the exact position of the forklift.
- Benefits: By knowing the position of each forklift, the warehouse management system can allocate tasks dynamically and ensure that goods are moved efficiently. Additionally, it can prevent collisions by alerting operators to avoid certain areas.
Angle of Departure (AoD) Example: Autonomous Robot Navigation
- Scenario: In the same warehouse, autonomous robots are used to pick up and deliver goods. These robots need to navigate precisely to avoid obstacles and optimize routes.
- How AoD Works: The warehouse management system sends location and directional information to the robot using AoD. The antennas on the warehouse walls transmit signals, and the robot’s receiver calculates the AoD to determine where the signal came from, guiding its path.
- Benefits: AoD enables precise navigation for the robots, improving delivery times and reducing errors by ensuring that the robot moves directly toward the desired location.
2. Hospitals: Equipment and Patient Monitoring
Angle of Arrival (AoA) Example: Medical Equipment Tracking
- Scenario: In a large hospital, tracking the location of critical medical equipment (like defibrillators, portable ventilators, or wheelchairs) is essential for efficient patient care.
- How AoA Works: Each piece of equipment is tagged with a UWB or Bluetooth beacon. The RTLS system uses AoA from receivers installed in the hospital ceilings or walls to determine where each piece of equipment is located in real-time.
- Benefits: Nurses and doctors can quickly locate the nearest available equipment in emergencies. It also helps with inventory management and ensures that equipment is not misplaced or left in unauthorized areas.
Angle of Departure (AoD) Example: Patient Monitoring in Specialized Units
- Scenario: In intensive care units (ICUs) or neonatal wards, tracking the precise location of patients can be vital for maintaining safety and managing care efficiently.
- How AoD Works: Each patient wears a bracelet with a BLE or UWB tag. The bracelet receives AoD signals from antennas in the room to determine its precise location and orientation within the ward. This information is relayed to the central hospital system.
- Benefits: This system can trigger alerts if a patient moves into a restricted area or if critical equipment, like infusion pumps, are moved out of the patient’s proximity. It can also ensure that patients are not left unattended in dangerous areas like emergency exits.
3. Retail: Customer Engagement and Inventory Management
Angle of Arrival (AoA) Example: Customer Navigation in Large Stores
- Scenario: In a large department store or shopping mall, offering personalized guidance to customers can enhance their shopping experience.
- How AoA Works: Shoppers using the store’s mobile app are tracked by AoA as their phones emit Bluetooth signals. The store’s RTLS system receives these signals at multiple antennas installed across the space.
- Benefits: The system can provide personalized in-store navigation to customers, helping them find products or specific departments. It can also trigger location-based offers as they approach certain sections (e.g., discounts on products in the electronics section when the customer is nearby).
Angle of Departure (AoD) Example: Dynamic Inventory Tracking
- Scenario: Retail stores often need to track their high-value inventory, such as electronics, in real-time to prevent theft or ensure stock accuracy.
- How AoD Works: Products are tagged with BLE or UWB transmitters. When a store associate scans the inventory, the AoD from the handheld scanner is used to locate where the product is on the shelves or in the storage area.
- Benefits: This system helps retailers find misplaced inventory more easily and ensures that they maintain accurate stock levels. It also alerts managers if high-value items are moved out of designated areas, reducing theft risks.
4. Healthcare: Staff and Equipment Location
Angle of Arrival (AoA) Example: Staff Tracking in Emergency Rooms
- Scenario: In a busy emergency room (ER), managing the location of medical staff is crucial for optimizing response times.
- How AoA Works: Staff members wear BLE badges that continuously emit signals. Antennas placed throughout the ER capture the signals and calculate the AoA to determine the exact position of each doctor or nurse.
- Benefits: The system can direct available staff to patients in need based on their real-time location, improving emergency response times. It also helps manage staff workload by tracking their movement and ensuring balanced task assignments.
Angle of Departure (AoD) Example: Mobile Medical Device Localization
- Scenario: Some healthcare facilities use mobile diagnostic devices, such as portable ultrasound machines. Locating these quickly is important for patient care.
- How AoD Works: The RTLS system uses fixed transmitters in the hospital to send out AoD signals, which mobile devices receive. The devices calculate the direction of the signals to determine where they are relative to the fixed points.
- Benefits: This system helps healthcare providers quickly find mobile devices in large facilities, ensuring that equipment is always available when needed. It also aids in theft prevention by tracking devices’ movement out of designated areas.
5. Smart Buildings: Occupancy and Energy Management
Angle of Arrival (AoA) Example: Occupancy Monitoring for Energy Savings
- Scenario: In smart office buildings, energy efficiency can be improved by dynamically controlling heating, ventilation, and lighting based on occupancy.
- How AoA Works: Employees carry ID cards or smartphones that emit BLE signals. Antennas located throughout the building capture these signals and calculate AoA to determine which rooms are occupied.
- Benefits: The building management system adjusts the HVAC and lighting systems based on real-time occupancy, reducing energy consumption in unoccupied areas. This leads to substantial cost savings and environmental benefits.
Angle of Departure (AoD) Example: Personalized Workspaces
- Scenario: In a modern smart office, employees move between different workspaces, meeting rooms, and common areas. Offering personalized workspace environments based on their preferences enhances comfort and productivity.
- How AoD Works: Fixed transmitters in the building send AoD signals to employees’ smartphones or wearable devices. The devices calculate their location within the building and automatically adjust the environmental settings (e.g., desk lighting, chair height, temperature) based on their profile.
- Benefits: Employees experience personalized, optimized workspaces without having to manually adjust settings, improving comfort and productivity. The system can also trigger reminders or alerts based on their location, such as notifying them when they are near a meeting room.
